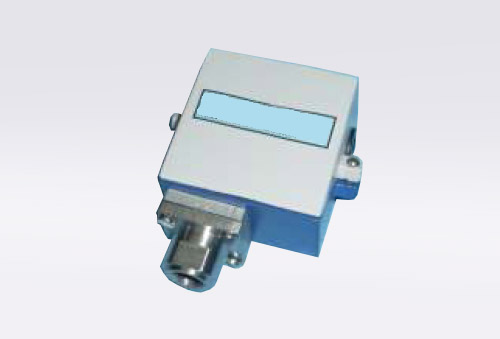

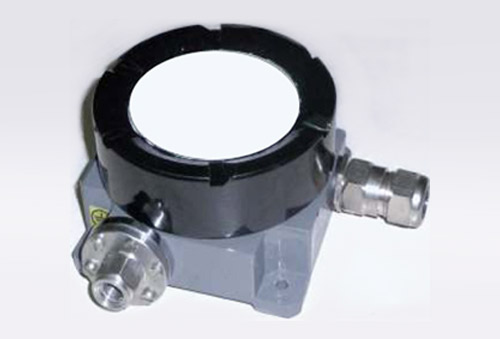

Explosion Proof Pressure Switch

project

Technical Specification :

  • Product and Description: Flame proof pressure switch Exd IP65
  • Product Code: STF
  • Range: As required
  • Sensing Elements: Diaphragm / Piston SS316L
  • wetted Part: SS 316
  • Enclosure: Flame proof Exd IIA IIB Certified By ERTL , BIS & CCOE
  • Protection : IP65
  • Enclosure: Die cast Aluminum
  • Micro switch – SPDT/ 2 SPDT Contact
  • Electrical rating:5A / 15A 250V AC ,
  • Repeatability: + - 1% of FS
  • Scale accuracy: +-3% of FS
  • Differential : Fixed / Adjustable Type
  • Process Connection: 1/4" BSP(F)
  • Cable entry: 3/4" ET
  • Mounting: Wall / Pipe

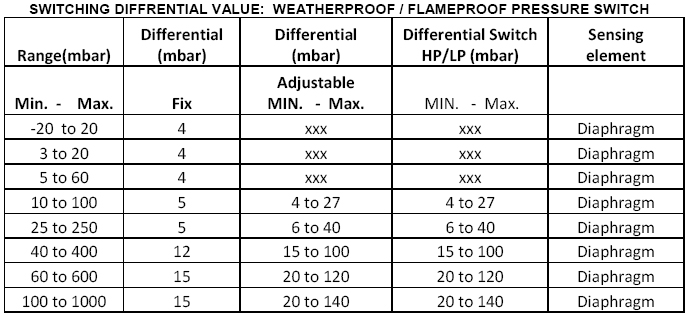

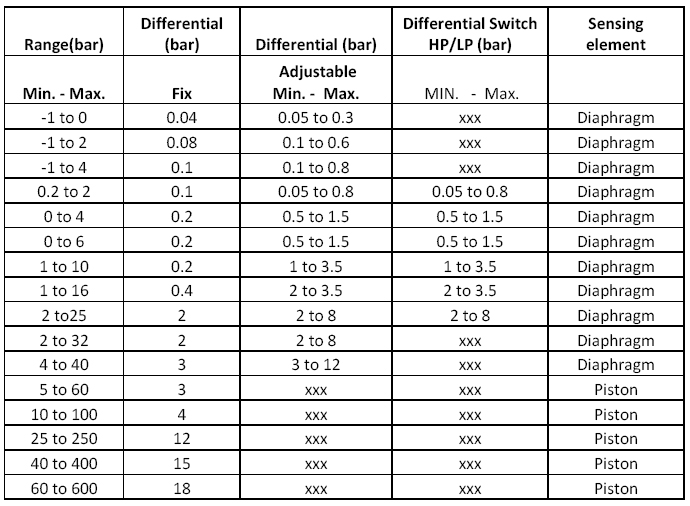

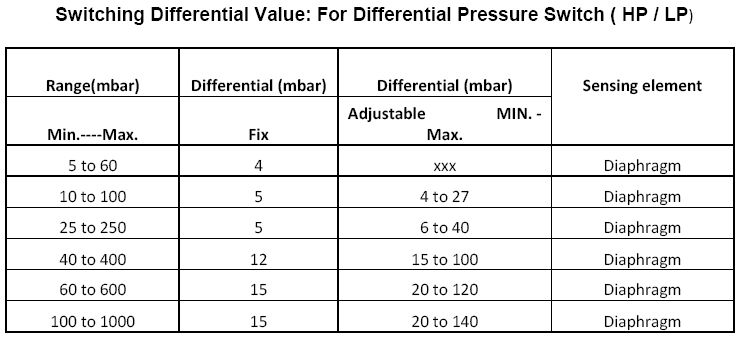

  • NOTE: Range & differential value refer attached chart

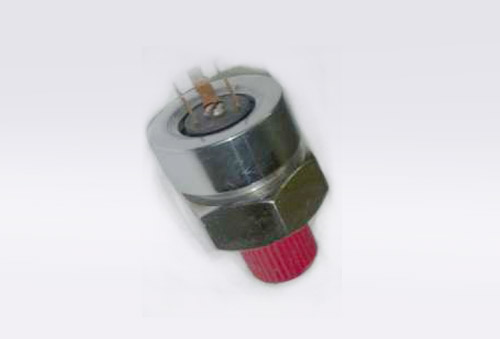

MINIATURE Pressure Switch

project
project

Technical Specification :

  • Product Code: STM
  • Range: As required
  • Sensing Elements: Diaphragm
  • wetted Part: SS 316
  • Micro switch – SPST Contact
  • Electrical rating: 5A 250V AC ,
  • Differential : Fixed
  • Process Connection: 1/4" BSP(F)
  • Mounting: Direct

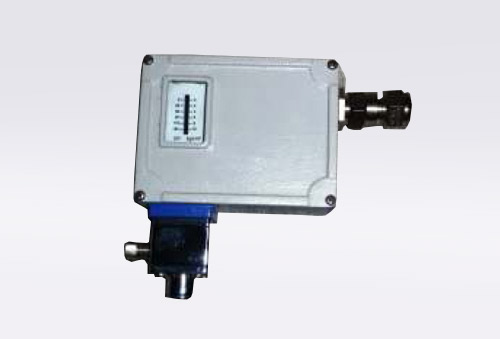

Weather Proof DP Switch

project

Technical Specification :

  • Product Code: STWDP
  • Range: As required.
  • Sensing Elements: SS Diaphragm SS316L
  • wetted Part: SS 316
  • Enclosure: Weather proof
  • Protection : IP65
  • Enclosure: Die cast Aluminium
  • Micro switch – SPDT/ 2SPDT Contact
  • Electrical rating: 5A /15A 250V AC ,
  • Repeatability: + - 1% of FS
  • Scale accuracy: +-3% of FS
  • Differential : Fixed Type
  • Process Connection: 1/4" BSP(F)
  • Cable entry: 3/4" ET
  • Mounting: Wall / Pipe

Weather Proof MINIATURE Pressure Switch

project
project

Technical Specification :

  • Product Code: STWM
  • Range: As required
  • Sensing Elements: Diaphragm/ Pisto n S S316L
  • wetted Part: SS 316
  • Enclosure: Weather proof
  • Protection : IP65

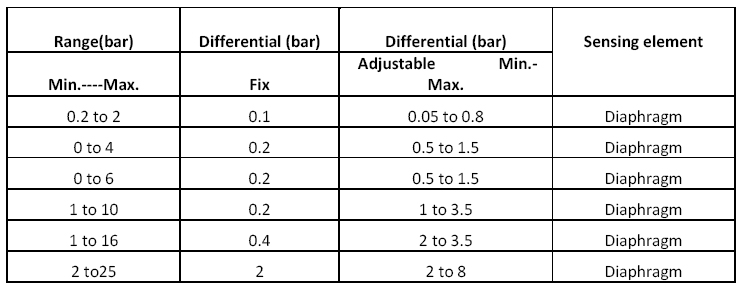

  • Enclosure: Die cast Aluminum Min.----Max.
  • Micro switch – SPDT Contact 1 to 10 Diaphragm
  • Electrical rating: 5A 250V AC , 2 to 25 Diaphragm
  • Differential : Fixed
  • Process Connection: 1/4" BSP(F) 5 to 75 Piston
  • Cable entry: PG9
  • Mounting: Direct

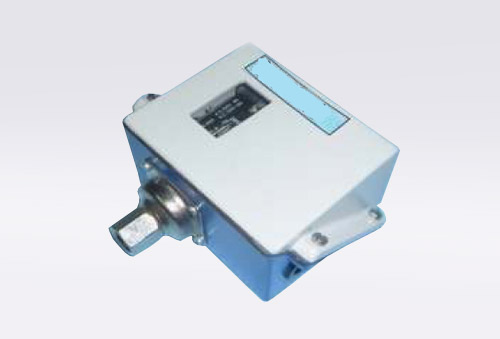

Weather Proof Pressure Switch

project

Technical Specification :

  • Product Code: STWF
  • Range: As required
  • Sensing Elements: Diaphragm /Piston SS316L
  • wetted Part: SS 316
  • Enclosure: Weather proof
  • Protection : IP65
  • Enclosure: Die cast Aluminum
  • Micro switch – SPDT / 2SPDT Contact
  • Electrical rating: 5A / 15A 250V AC ,
  • Repeatability: + - 1% of FS
  • Scale accuracy: +-3% of FS
  • Differential : Fixed / Adjustable Type
  • Process Connection: 1/4" BSP(F)
  • Cable entry: 3/4" ET
  • Mounting: Wall / Pipe
  • NOTE: Range & differential value refer attached chart

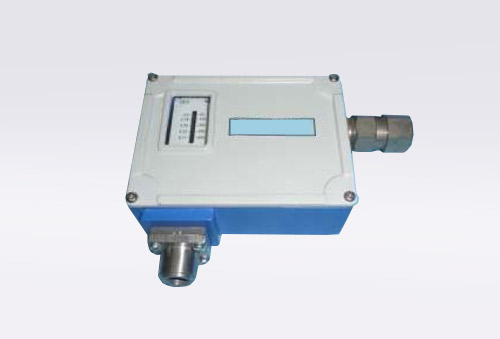

Weather Proof Pressure Switch Adjustable type

project

Technical Specification :

  • Product Code: STA
  • Range: As required
  • Sensing Elements: PB Bellows
  • Enclosure: Weather proof
  • Protection : IP65 Switching Range
  • Enclosure: Die cast Aluminum
  • Micro switch: SPDT Contact
  • Electrical rating: 5A 250V AC
  • Repeatability: + - 2% of FS
  • Scale accuracy: +- 5% of FS
  • Differential : Adjustable Type
  • Process Connection: 1/4" BSP(F)
  • Cable entry: 3/4" ET
