CONSTRUCTION FEATURES
| Dial Size : | 63mm, 100mm, 150mm & 250mm. |
|---|---|
| Accuracy : | ±1% of full scale. |
| Case & Bezel (IP-65) : | SS 304 Snap Action Bayonet type & for 250mm Die cast aluminum. |
| Movement : | SS 304 |
| Pressure Element : | SS 316 ( ≤ 70 bar 'C' Type / > 70 bar Coil Type ). | Socket : | SS 304 / SS316 | Dial : | Aluminum white painted with 270 degree black scale marking. | Pointer : | Al. / Brass, Zero adjustment / Micro Zero Adjustment pointer. | Window : | Toughened / Safety glass. | Blow Out Protection : | 63mm on Top & 100 & 150mm on back side at 0.6 Kg/cm . | Over Load Protection : | 125% of f.s.d. for ≤ 150 Kg/cm2 / 115% of f.s.d. for > 150 Kg/cm2 . |

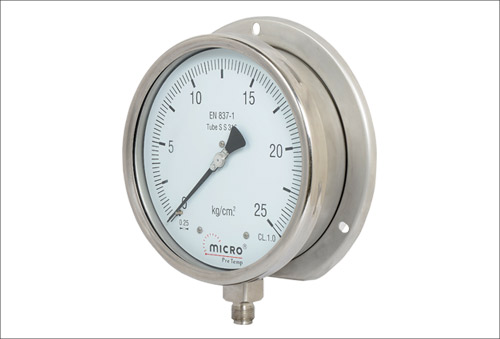

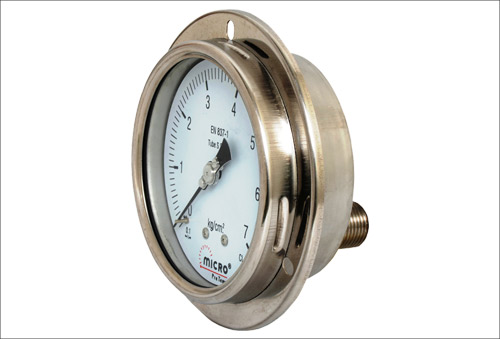

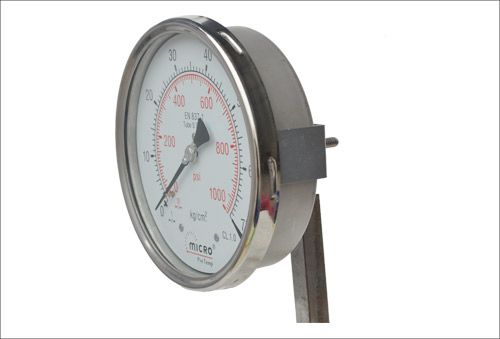

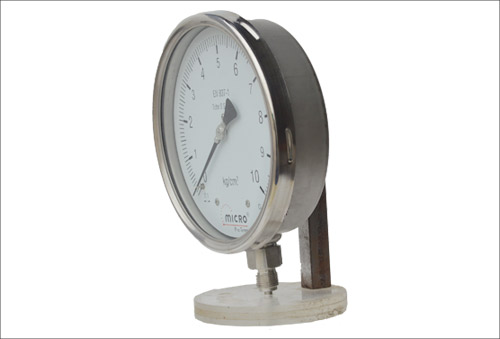

Joints : | Argon arc welded. | Mounting : | Stem (Bottom), Surface, Panel Mounting, Flush Panel ( Bracket Type). | Connection : | ¼" / 3/8" / ½" BSP / NPT. | Scale Range : | Vacuum, Compound & Pressure up to 1400 kg/cm . |
OPTIONAL FEATURES :
S S 316 Case & Bezel available on request.
Ammonia (NH ), Oxygen(O ), Freon Scale available on request. 3 2
Eco Model in M.S. & SS Case available on request.
APPLICATION : Chemical & Petrochemicals, Power generation, Pollution Control Equipment, Oil exploration and any other application requiring fine quality, long lasting pressure measurement etc.
