CONSTRUCTION FEATURES

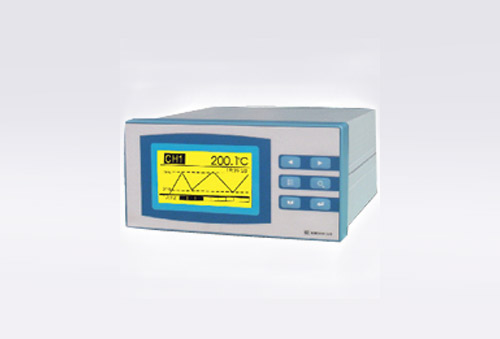

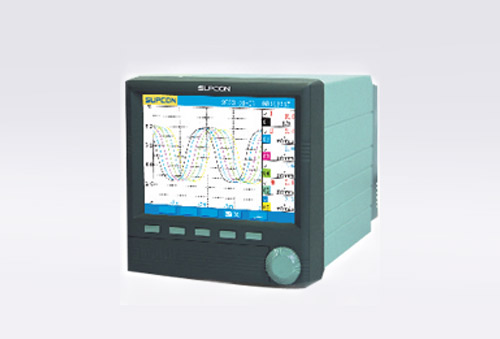

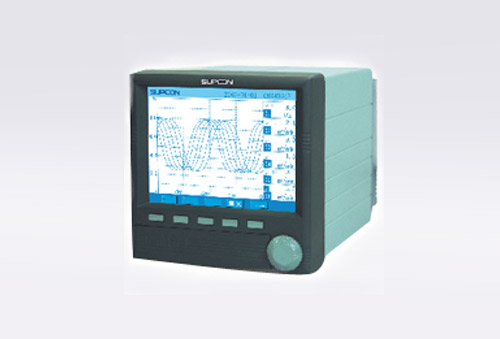

| Features | R1000 | R3000 | R4000 |
|---|---|---|---|
| Display | STN (LED) | 5.6" TFT (CCFL)Color | 5.6" TDF (CCFL) Monochromatic |
| Input Type | Universal (T/C, RTD, 4-20 mA, mV, V) | Universal (T/C, RTD, 4-20 mA, mV, V) | Universal (T/C, RTD, 4-20 mA, mV, V) |
| Accuracy | ±0.2% | ±0.2% | ±0.2% |
| Alarm Output | 4 | 12 | 12 |
| Power Supply | 3CH (30mA/CH) | 3CH (50mA/CH) | 3CH (50mA/CH) |
| Totalizer | YES | YES | YES |
| Temperature & Pressure Compensation | 1 Group | 3 Group | 3 Group |
| Communication | RS232 / 485 | RS232 / 485 | RS232 / 485 |
| Internal Memory | 3M bit FLASH | 8/16 Mbyte NAND FLASH | 8/16 Mbyte NAND FLASH |
| External Memory | - | 64/128 M CF Card | 64/128 M CF Card |
| Power | 85~264V AC 20-30V DC | 85~264V AC 20-30V DC | 85~264V AC 20-30V DC |
BIMETAL TEMP. GAUGES APPLICATION : Domestic & industrial heating system, hot water boiler, power plant, food & beverage industries, pharmaceutical industry etc.
