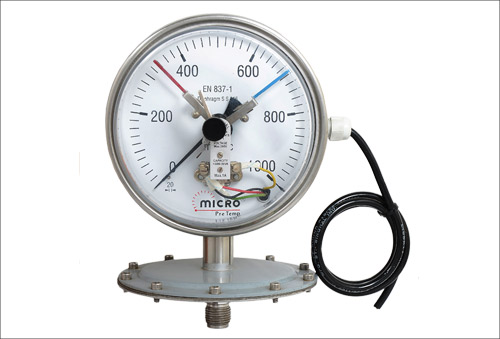

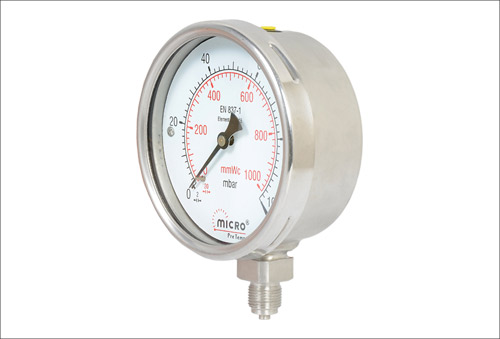

CONSTRUCTION FEATURES
| Dial Size : | 100mm & 150mm. |
|---|---|
| Accuracy : | ±1% of full scale. |
| Case & Bezel (IP-65) : | SS 304 Snap Action Bayonet type. |
| Movement : | Brass / SS 304. |
| Pressure Element : | SS 316 Diaphragm / Compact capsule. | Dial : | Aluminum white painted with 270 degree black scale marking. | Pointer : | Al. / Brass, Zero adjustment / Micro Zero Adjustment pointer. | Window : | Toughened / Safety glass. | Over Load Protection : | 125% of f.s.d. for ≤ 150 Kg/cm / 115% of f.s.d. for > 150 Kg/cm . |

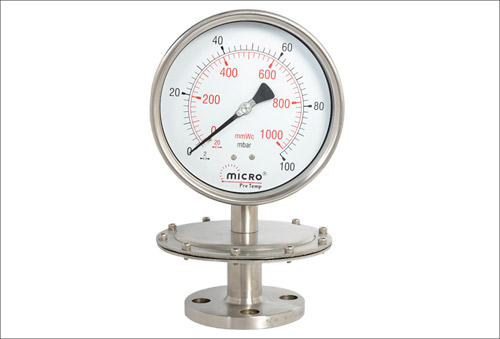

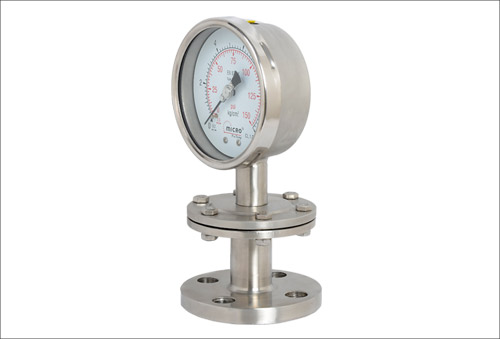

Mounting : | Direct Bottom entry. | Scale Range : | For Schaffer Diaphragm: 760mmHg Vacuum,Compound, 0.6 to 21 Kg/cm . | For Low Pressure Diaphragm : | 250mmWc to 6000 mmWc. | For Compact Capsule : | 250mmWc to 6000mmWc. Upper Chamber | Material : | SS 304 / Carbon Steel Powder Coated. | Diaphragm Material : | Brass / SS 316, Teflon Coating can provided if required. | Lower Chamber : | SS 304 / SS 316, PTFE Lining provide if required. ( Threaded / Flange type ). |
OPTIONAL FEATURES :
• Economic M.S. Model available on request.
• Flanged connection available on request.
APPLICATION : Medical & Vacuum Technology, environment & heating engineering, level indication & filter monitoring.
