CONSTRUCTION FEATURES

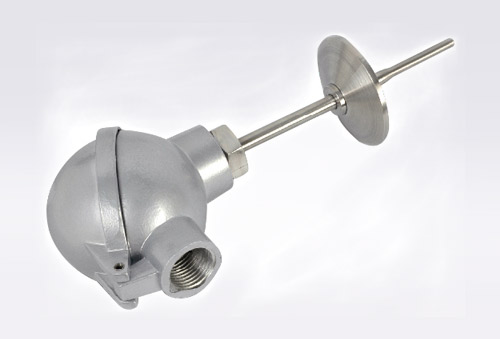

| Enclosure : | Die Cast Aluminum. |
|---|---|
| Protection : | IP, Flameproof Grade IIA, IIB & IIC. |
| Accuracy : | Class A & Class B. |
| Sensor Element : | PT-100 Simplex & PT-100 Duplex. |
| Cold End : | Terminated in to ceramic terminal block. | Stem Material : | SS 316 / SS 304, Inconel, Monel, Haystalloy. | Stem Dia. : | 6mm, 8mm, 10mm & 12mm. | Stem Length : | 300mm Standard. | Configuration : | 2 wire, 3 wire & 4 wire. | Connection : | ¼", 3/8", ½" BSP / NPT Adjustable. | Range : | -200°C to 600°C |
OPTIONAL FEATURES :
• Head mounted transmitter can be mounted

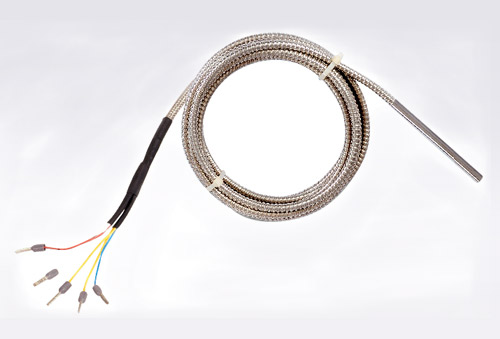

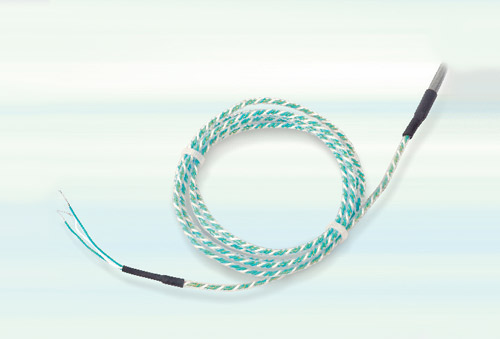

• Cable RTD available
• Cable insulation made of PVC, Silicon,
• Teflon Coated & SS Braded.
APPLICATION : Plastic processing machineries, Injection Moulding Machines, Engine Cylinder heads and oil pumps, bearing, pipelines & tanks. Energy & power plants, chemical industries, food & beverage industries, sanitary, heating & air conditioning technology.
