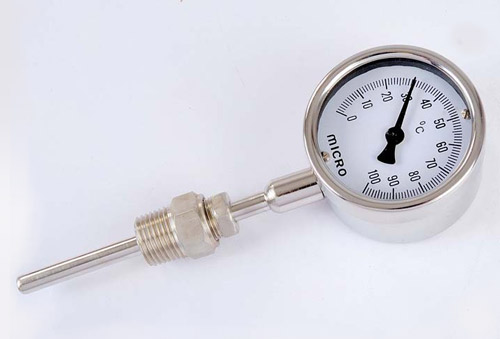

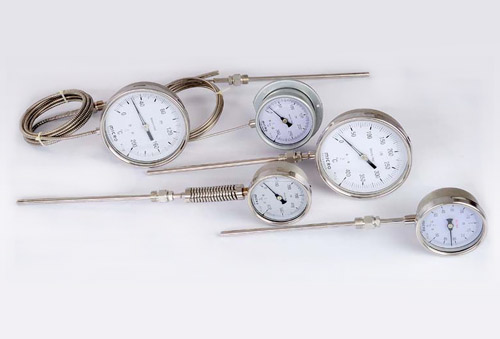

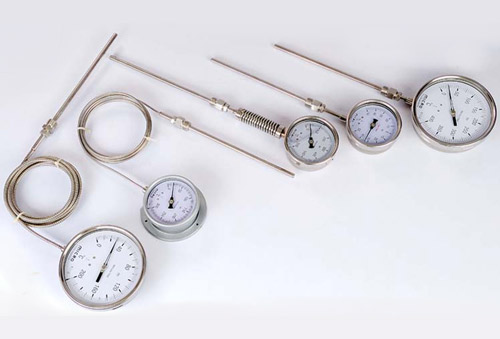

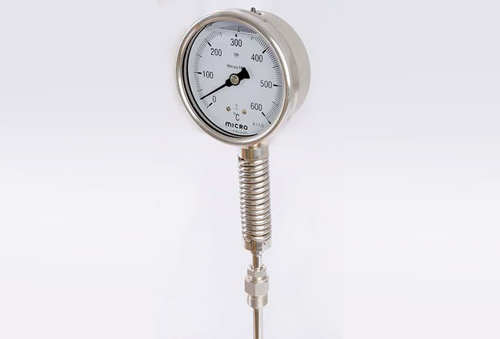

CONSTRUCTION FEATURES
| Dial Size : | 100mm & 150mm. |
|---|---|
| Accuracy : | + 1% of full scale. |
| Case & Bezel (IP-65) : | SS 304 Snap Action Bayonet type. |
| Temp. Element : | Mercury / Gas actuated. |

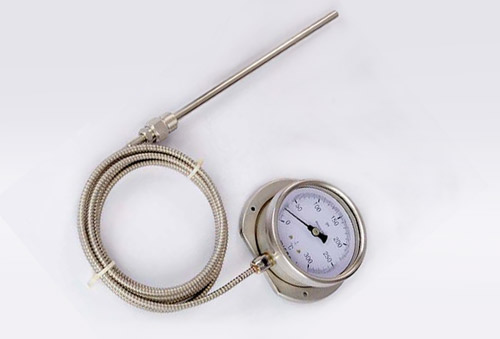

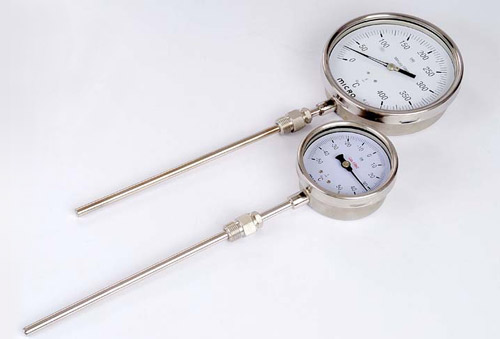

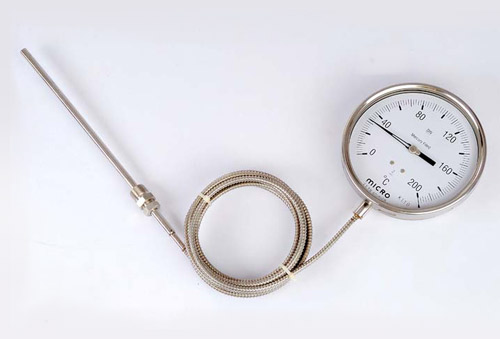

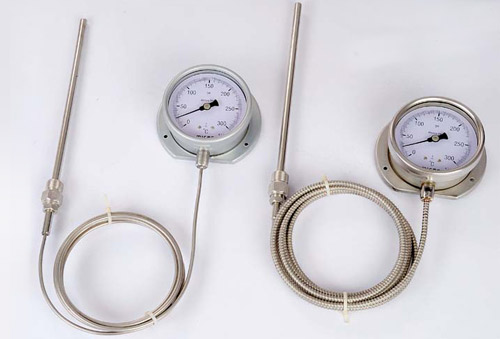

| Stem & Bulb : | SS 316 | Stem & Bulb Dia. : | 6mm, 8mm, 10mm & 12mm. | Stem Length : | up to 300mm. | Capillary Material : | M S / S S 316 Micro bore. | Capillary Protection : | SS 304 Tubing, PVC, SS Armored. | Dial : | Aluminum white painted with 270 degree black scale marking. | Pointer : | Al. / Brass, Zero Adjustment / Micro Zero Adjustment. | Window : | Toughened / Safety glass. | Joints : | Argon arc welded. | Mounting : | Stem (Bottom), Back & Surface with capillary extension. | Connection : | ¼" / 3/8" / ½" BSP / NPT ( Adjustable ). | Scale Range : | -30 to 50° C to 650° C or equivalent in °F |
OPTIONAL FEATURES :
• Anti vibration fitting, Dual scale °C & °F available on request.
• Liquid filled case with Glycerin or Silicon on request.
• Alarm contact type & Capillary extension on request.
APPLICATION : Pharmaceutical industries, Chemicals & Petrochemicals, Fertilizers & Refineries, Filters for liquid control systems and all Process Industries.
