CONSTRUCTION FEATURES
| Dial Size : | 63mm, 100mm, 150mm & 250mm. |
|---|---|
| Accuracy : | ±1% of full scale. |
| Case & Bezel (IP-65) : | SS 304, Crimp Type / Snap Action Bayonet type & for 250mm Die cast aluminum. |

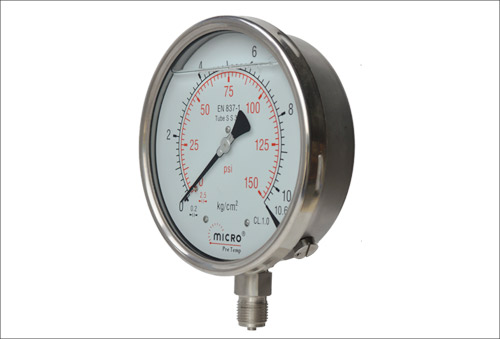

| Movement : | SS 304 / Brass (63 mm) |
| Pressure Element : | SS 316 ( ≤70 bar 'C' Type / > 70 bar Coil Type ). | Socket : | SS 304 / SS 316 / BRASS (63mm). | Dial : | Aluminum white painted with 270 degree black scale marking. | Pointer : | Al. / Brass with black finish. | Window : | Acrylic / Safety glass. | Blow Out Protection : | On top at 0.6 Kg/cm2 . | Over Load Protection : | 125% of f.s.d. for ≤ 150 Kg/cm2 115% of f.s.d. for > 150 Kg/cm2 . |

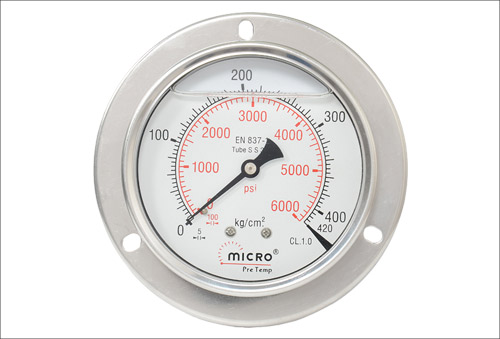

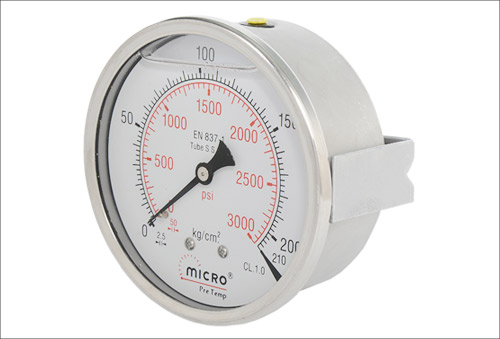

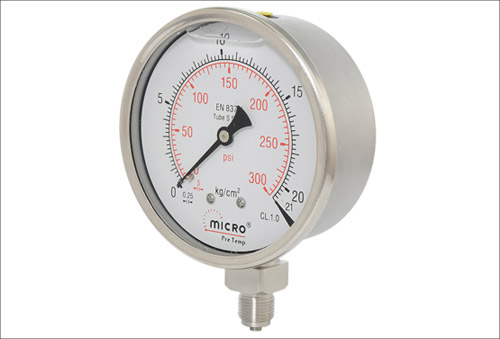

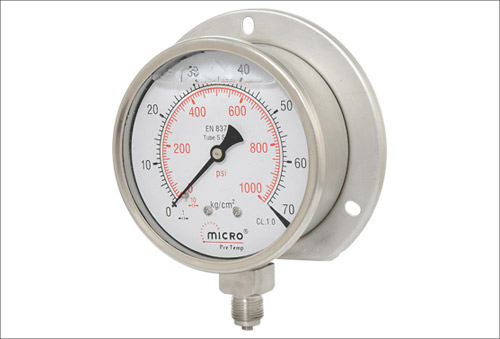

Joints : | Argon arc welded / Brass silver brazed. | Mounting : | Stem (Bottom), Surface, Panel Mounting, Flush Panel ( Bracket Type). | Connection : | ¼" / 3/8" / ½" BSP / NPT. | Scale Range : | Vacuum, Compound & Pressure up to 1400 kg/cm2 . |
OPTIONAL FEATURES :
• S S 316 Case & Bezel available on request.
• Ammonia (NH3), Oxygen(o2), Freon Scale available on request.
• Eco Model in M.S. Case & S S Case available on request.
APPLICATION : Air Compressor, Hydraulic Presses, Pumps, Industrial Power Plants, Marine engines, Pipelines and Transmission Stations where Vibration & Pulsation are destructive factors.
