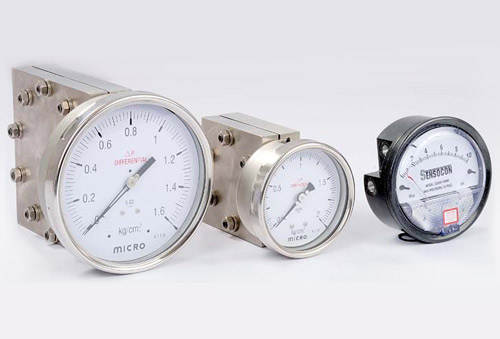

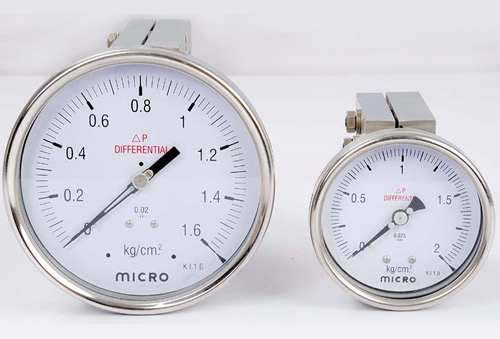

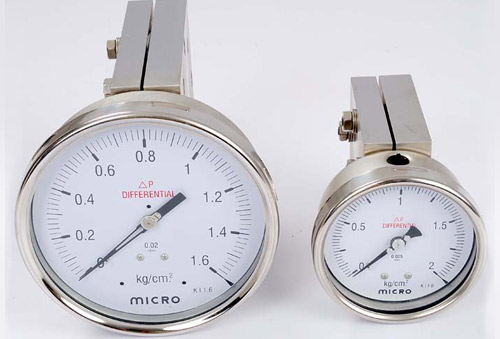

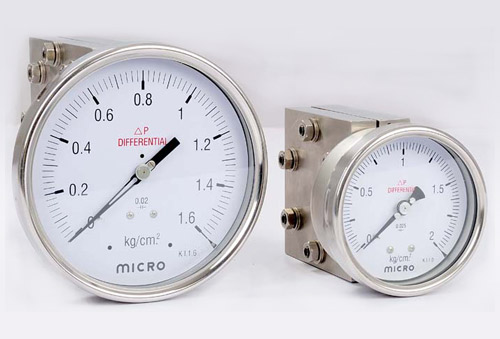

CONSTRUCTION FEATURES
| Dial Size : | 100mm & 150mm. |
|---|---|
| Accuracy : | ±1.6% of full scale. |
| Case & Bezel (IP-65) : | SS 304 Snap Action Bayonet type. |
| Movement : | SS 304 |
| Pressure Element : | SS 316L Single diaphragm. | HP / LP Chamber : | SS 304 / SS 316. | Dial : | Aluminum white painted with 270 degree black scale marking | Pointer : | Al. / Brass, Micro Zero Adjustment pointer. | Window : | Toughened / Safety glass | Sealing Ring : | Viton | Mounting : | Direct & Surface. | Scale Range : | 250mmWc to 6000mmWc ….. up to 10 Kg/cm |
OPTIONAL FEATURES :
• D P with Electrical contact available on request.
• Pressure equalizing valve available on request.
• Surface & Pipe Mounting on request.
APPLICATION : Air, Gas & Filter Application.
